N+1 AdaptX LNP Systems

Robust, Flexible and Pulsation Optimized SU System for any LNP process.

Optimized for your process, capacity needs, and your wallet. The N+1 AdaptX LNP (lipid nanoparticle production) System, available for both the benchtop and the GMP MFG floor offers best in class components to minimize pulsation and deliver superior flow control into a customer specified mixing point while delivering up to 4x process capacity within a single system with multi scale SU Flow Kits and adaptive parallel pooling operations.

A 21 CFR Part 11 compliant fully automated solution, N+1 allows the customer to define their automation platform preference or use ours to ensure streamlined integration of manufacturing and development data.

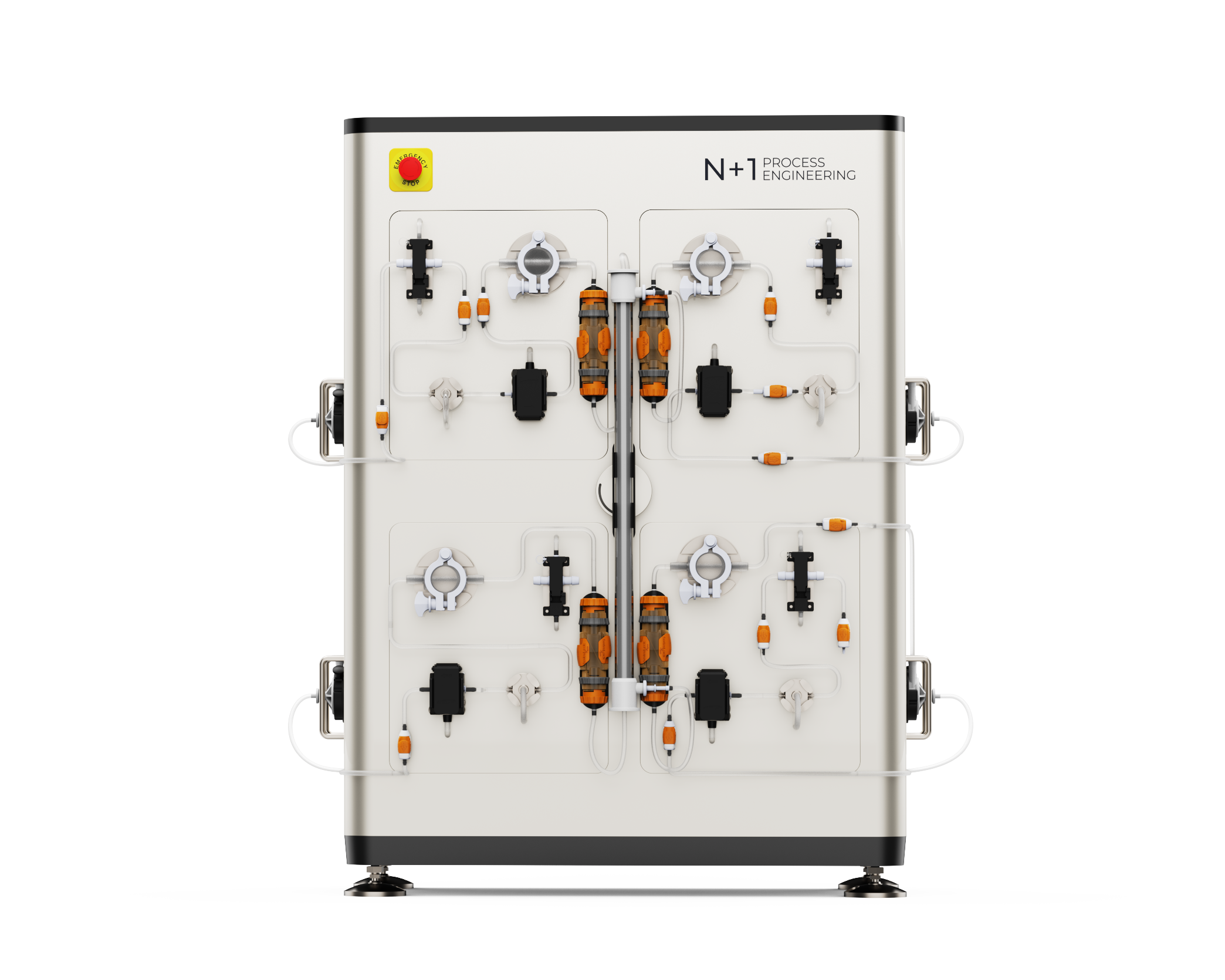

AdaptX LNP System

Mixing Point Technology Integration Flexibility

  • Benchtop or cGMP Suite Models

  • Two Flow Kit Scales Per System Size

  • Flow Kit Range: 1/8” - 1/2” I.D. Tubing

  • Levitronix Pumps, Equilibar Control Valves, E&H Single Use Coriolis Flowmeters Standard

  • Customer Preferred Automation (N+1 Liminal, Siemens, Rockwell, DeltaV)

  • NEMA 4x Rated

  • 1x - 4x Production Capacity on Single Full System

Dimensions (without quenching sub system)

Compressed Air Requirement

1660 mm x 770 mm x 927 mm (H x W x D) (Full System)

830 mm x 770 mm x 927 mm (H x W x D) (Half System)

6 Barg

Operating Conditions

Panel Rating

IP55

Regulatory Compliance

21 CFR Part 11, CE, RoHS

15-27 deg C,

20-80% RH

NEMA 4X

Ingress Protection

Pump Speed Range

Pressure Sensor Range and Accuracy

0 – 7000 rpm

0 – 60 psig, +/- 0.5% FS

Flow Sensor Range and Accuracy

1/8” ID Flow Kit: 0-2 kg/min, +/- 0.5% O.R.

¼” ID Flow Kit: 0-4.8 kg/min, +/- 0.5% O.R.

Flow Sensor Type

Single-Use Coriolis Mass Flow Sensor
